Sa-vintage Master Series

Stage Accompany Master Series 4549,4547,PS44, P44 Marmer serie

The Master Series Monitor`s reference list uit 1991.

Allereerste versie (prototype?) van de M49 .                                                    Showroom in Hoorn


De Stage Accomapny PS44 marmer bekleedt

Zeer zeldzaam

Hier van zijn 10 setjes gemaakt in  Filipijnen door een goede vriend van Ed Wijnkers.

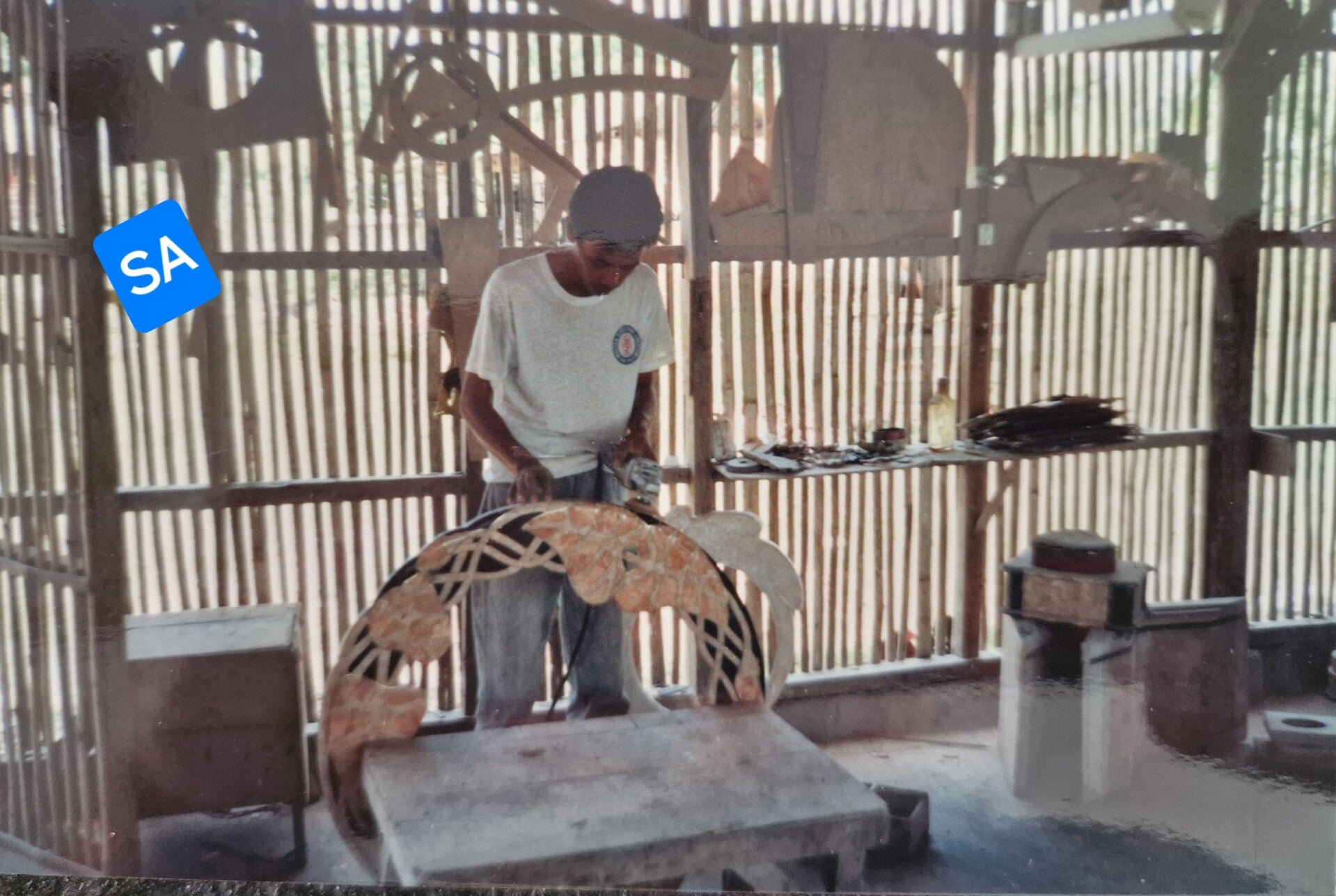

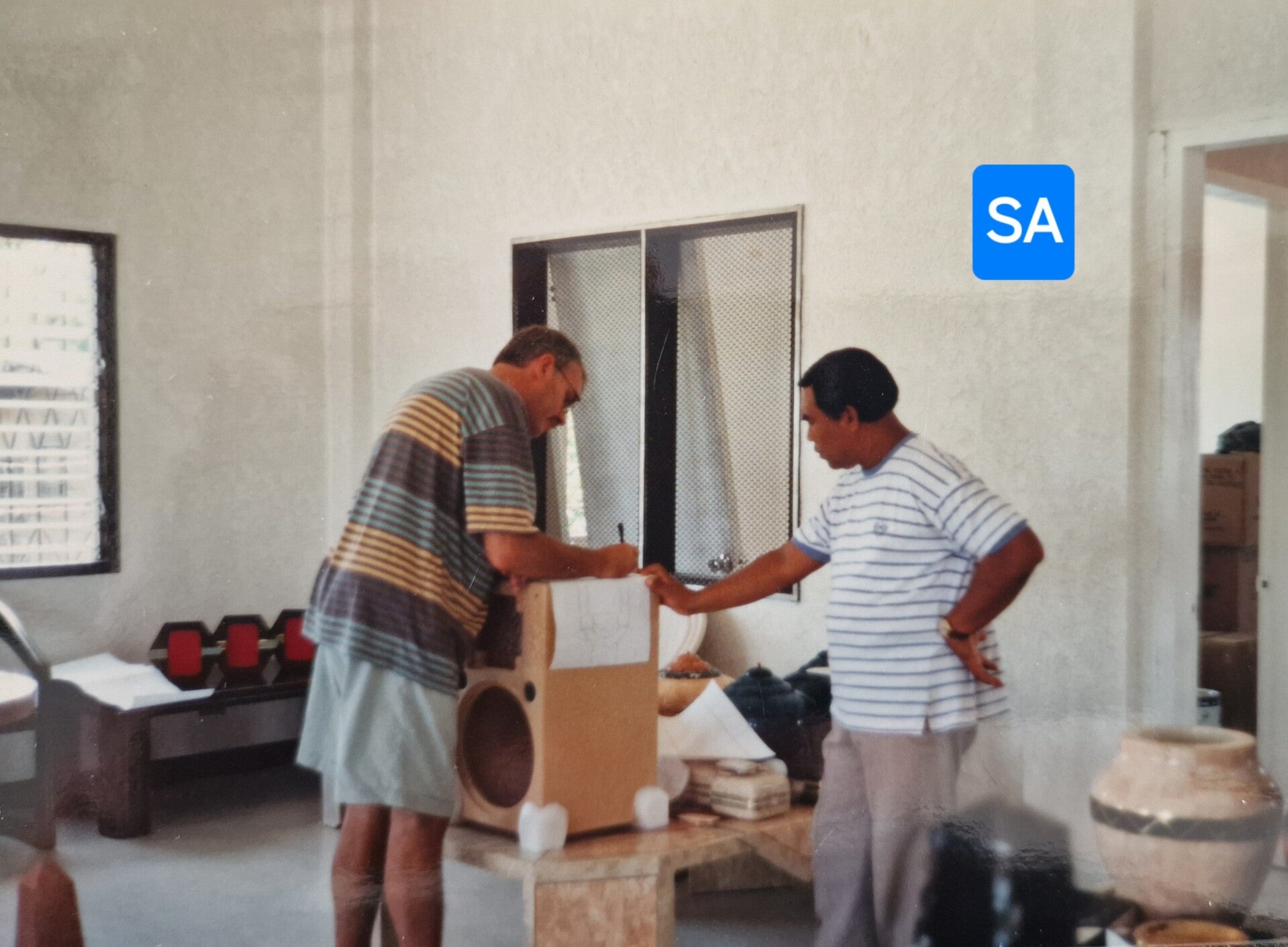

Zie de foto`s van deze bijzonder productie van de PS44, de hand arbied die je moet verrichten om dit te laten doen.

De kast is van 28 MDF en de marmer opleg is  8 mm dik.

Kosten van deze speaker was ruim 16.000,- gulden toen.

Zijn zeer zeldzaam deze speaker.


Stage Accompany Master Series M59,M57,PS44

SA M59 Master and the PPa1200 amps

Stage Accompany finished a special version of the M59 box-in-box type monitor with a 40mm outer enclosure of bamboo.
The inner and outer enclosures are seperated with a layer of heavey bitumen.
The total wall thickness of this M59, with a inner enclosure of 18mm and a 4.2mm layer of heavey bitumen, totals 62.2mm!

M-59 Exclusief.

Optioneel 3-weg actief delen, of 2-weg met passief delen van MF/HF.Speciale export vanuit de fabriek in Nederland, in 40+18mm multiplex+MDF, met frontafwerking + frontgrill in zwarte stof.Aansluiting en interne bekabeling in Analysis-plus "SILVER-OVAL".Silver Oval is verzilverd koper gevlochten in ovale geometrie om inductie te elimineren.H x B x D: 95 x 101 x 61 cm. Gewicht 196 Kg/st.


German High-End enthousiast recieved his Stage Accompany M59 Master Series monitors and the Stage Accompany HE50 amps.
The three amps totaling 15kW of pure power, that's what we call heaving "head-room".

More see http://stageaccompany.com/products/master/master.html


M59 Master Series enclosure.

The purpose of this is to let this enclosure sounds even better then it allready did.

On the photo you see the assembled 15mm thick MDF inner enclosure with the double 15mm baffle, waiting for the outer enclosure.

The M59 is a box-in-box type enclosure, which means that there are actualy two enclosures slid in each other to make the walls 30mm thick.

M-59 Studio Standaard Stereo.

Technical specifications
Frequency response : 35Hz – 30kHz (+/- 3dB)
Transducers : 2 x SA1513, 15” LF/MF driver
2 x SA1203, 12” MF driver
1 x SA8535M, neodymium HF driver
Cross-over frequencies : 100Hz - 1400Hz
Nominal impedance : 4Ω LF, 4Ω MF, 13Ω HF
Sensitivity @ 1W/1m : 98dB LF, 98dB MF, 102dB HF
Max. RMS power : 800W LF, 800W MF, 60W HF
Max. Peak power : 2000W LF, 2000W MF, 1000W HF
SPL program/peak : 127dB/131dB LF, 127/131dB MF, 120/132dB HF
Coverage angles (@ 2kHz H x V) : 100° x 40°
Enclosure construction : 30mm thick baffle and walls, 15mm Birch plywood + 15mm MDF
Color : SA Black Protexture, other colors on request
Connectors : 3 x SpeakOn NL4, 1 x Low, 1 x Mid, 1 x High
Physical dimensions (H x W x D) : 908mm x 965mm x 569mm (35.8” x 38.0” x 22.4”)
Weight : 157kg (345.0lb)


M-57 Studio Standaard Stereo

.Frequency response : 35Hz – 30kHz (+/- 3dB)
Transducers : 2 x SA1205, 12” LF driver
1 x SA8535M, neodymium HF driver
Cross-over frequency : 1500Hz
Nominal impedance : 16Ω (passive), 4Ω LF (active), 13Ω HF (active)
Sensitivity @ 1W/1m : 97dB (passive), 97dB LF (active), 102dB HF (active)
Max. RMS power : 800W (passive), 800W LF (active), 60W HF (active)
Max. Peak power : 2000W (passive), 2000W LF (active), 1000W HF (active)
SPL program/peak : 126dB/130dB (passive), 126/130dB LF (active), 120/130dB HF (active)
Coverage angles (@ 2kHz H x V) : 100° x 40°
Enclosure construction : 30mm thick baffle and walls, 15mm Birch plywood + 15mm MDF
Color : SA Black Protexture, other colors on request
Connectors : 2 x SpeakOn NL4, 1 x Low / 1 x High (active), 1 x Input / 1 x link (passive)
Physical dimensions (H x W x D) : 908mm x 592mm x 420mm (35.8” x 23.3” x 16.6”)
Weight : 80kg (176.4lb)



Studio

Sa Solutions for studio environment zie PDF

Technische info Masters
PDF – 395,1 KB 252 downloads
Studio SA Solutions for studio.
PDF – 1,2 MB 214 downloads

Master serie Studio Monitors

Gebruikshandleiding/installtie voorschrift Versie 1.0 in PDF.

Master Serie Studio Handleiding Versie 1.0
PDF – 9,6 MB 223 downloads

Hessel, ik ken de muziek niet maar is goed opgenomen zeg !.

Vroegere CEO Eddy Wijnker.
